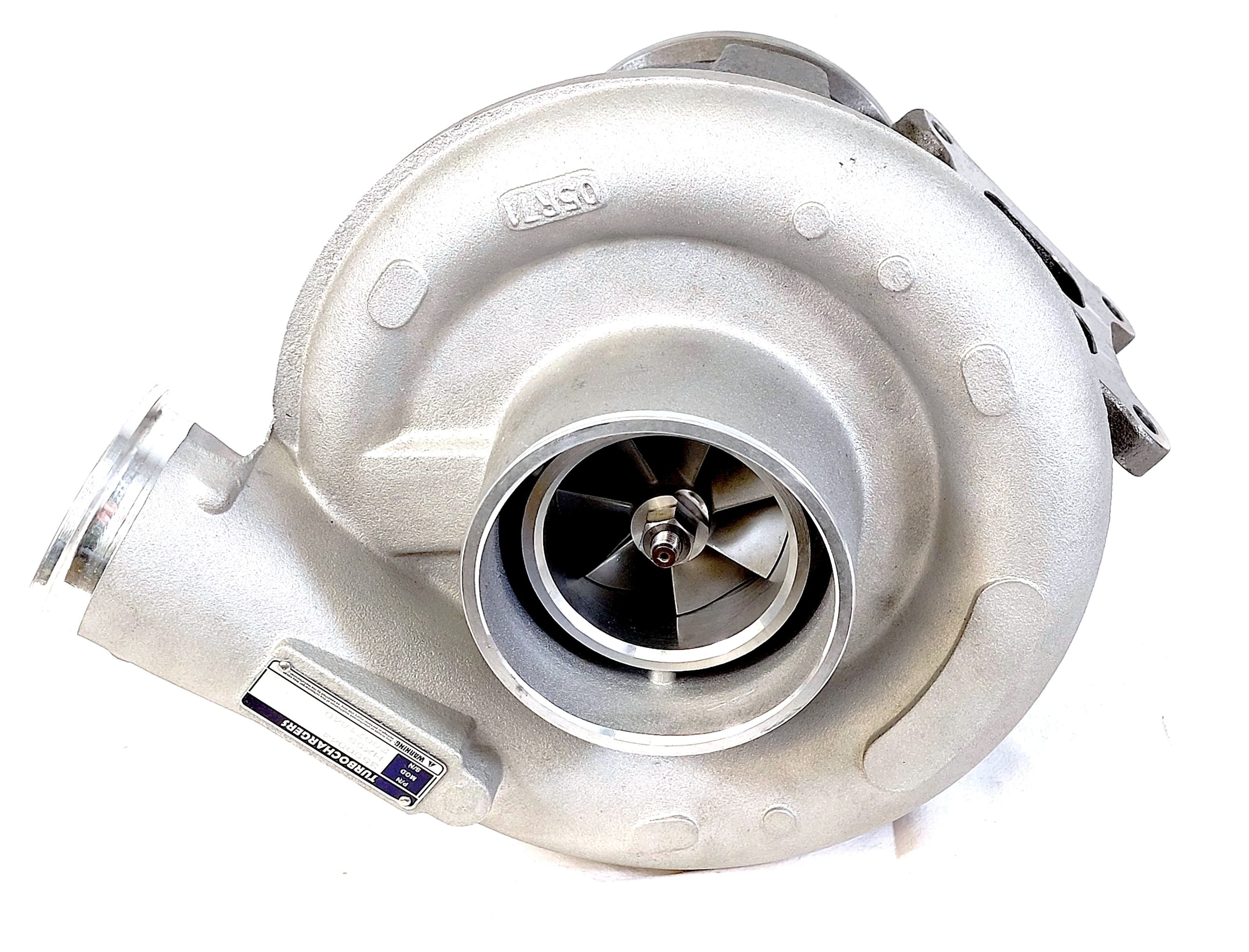

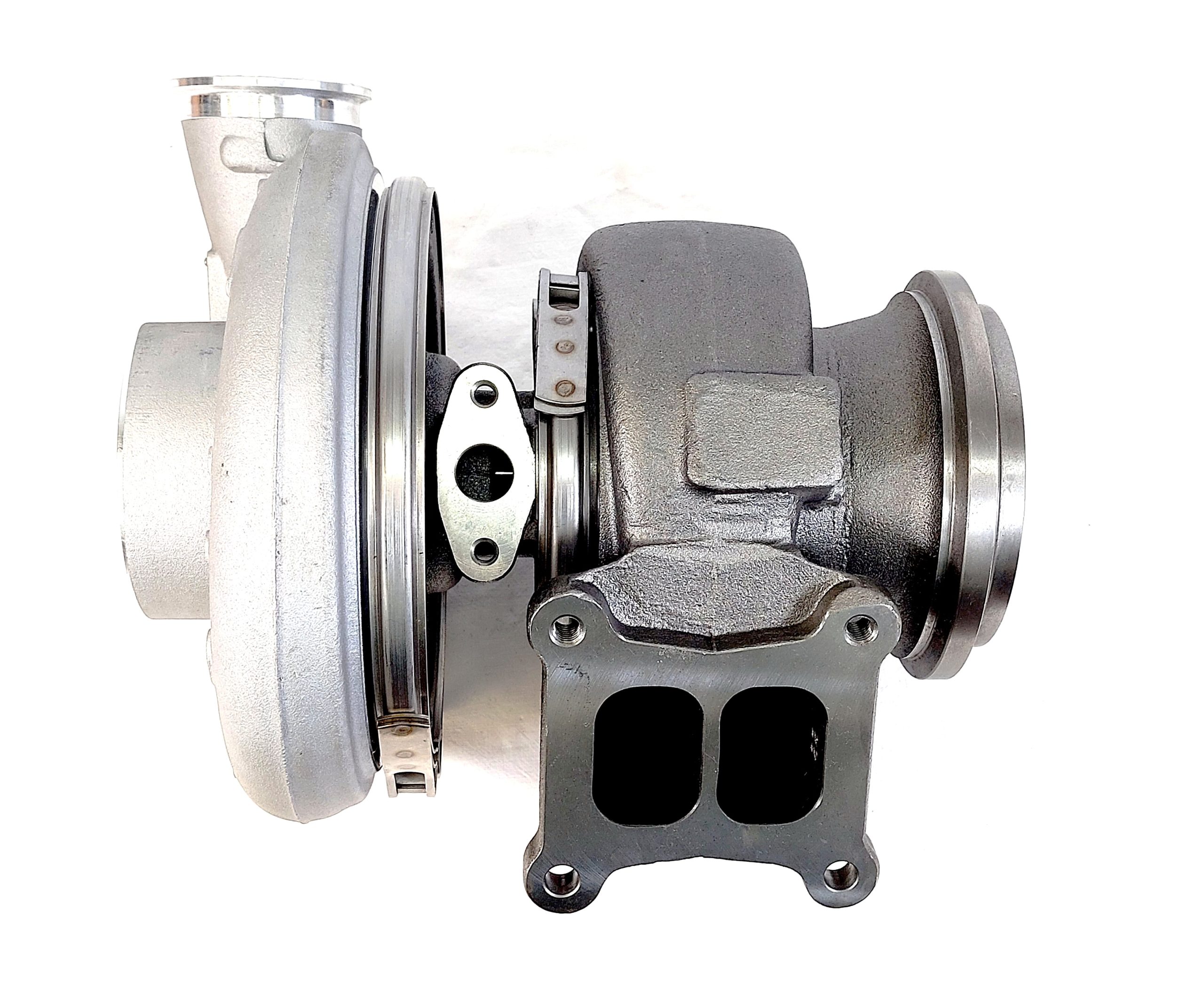

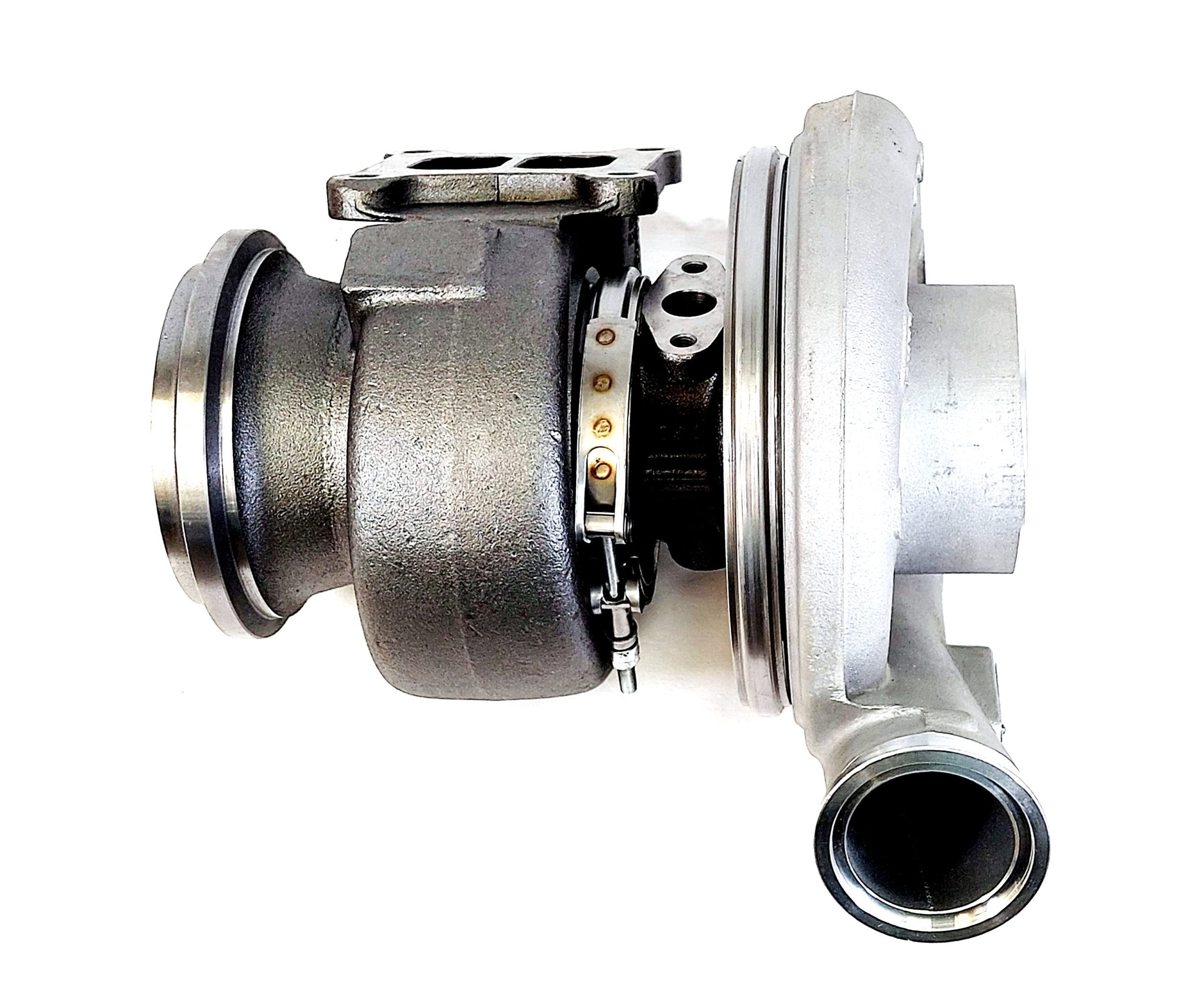

Turbo HX 55

5 000,00 kr

Endast 2 kvar i lager

Beskrivning

Fläns: T6

HX 55

Part Number: 3590044

OEM Number: 3800471, 3800471RX, 3803938
Turbo Model: HX55-E9861L/H22E11D, HX55

Angle α (Kompressorhus): 8/153/264/330°
Angle ß (Turbinhus): 90/92/130°
Bakplatta: 3528096 (1153055300)
Lagerhus: 3535704
CHRA: 3580726 (1153055900)
Kompressorkåpa (Noise Baffle): 3595516
Kompressorkåpa (Ring): 3531238
Kompressorkåpa: 3594775

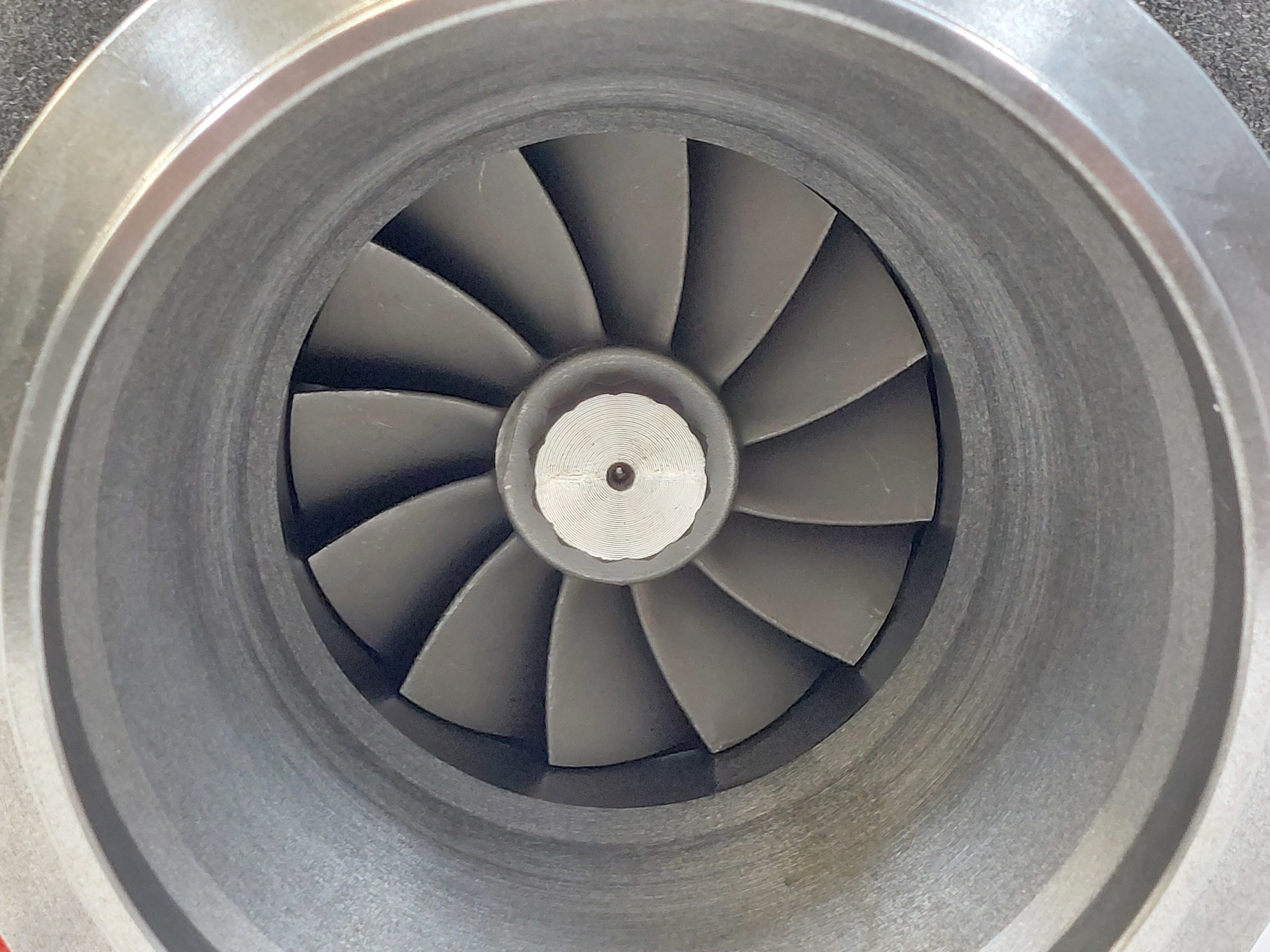

Kompressorhjul: 3534329/4041666 (Ind. 65.1 mm, Exd. 99.06 mm, 12 Blades)

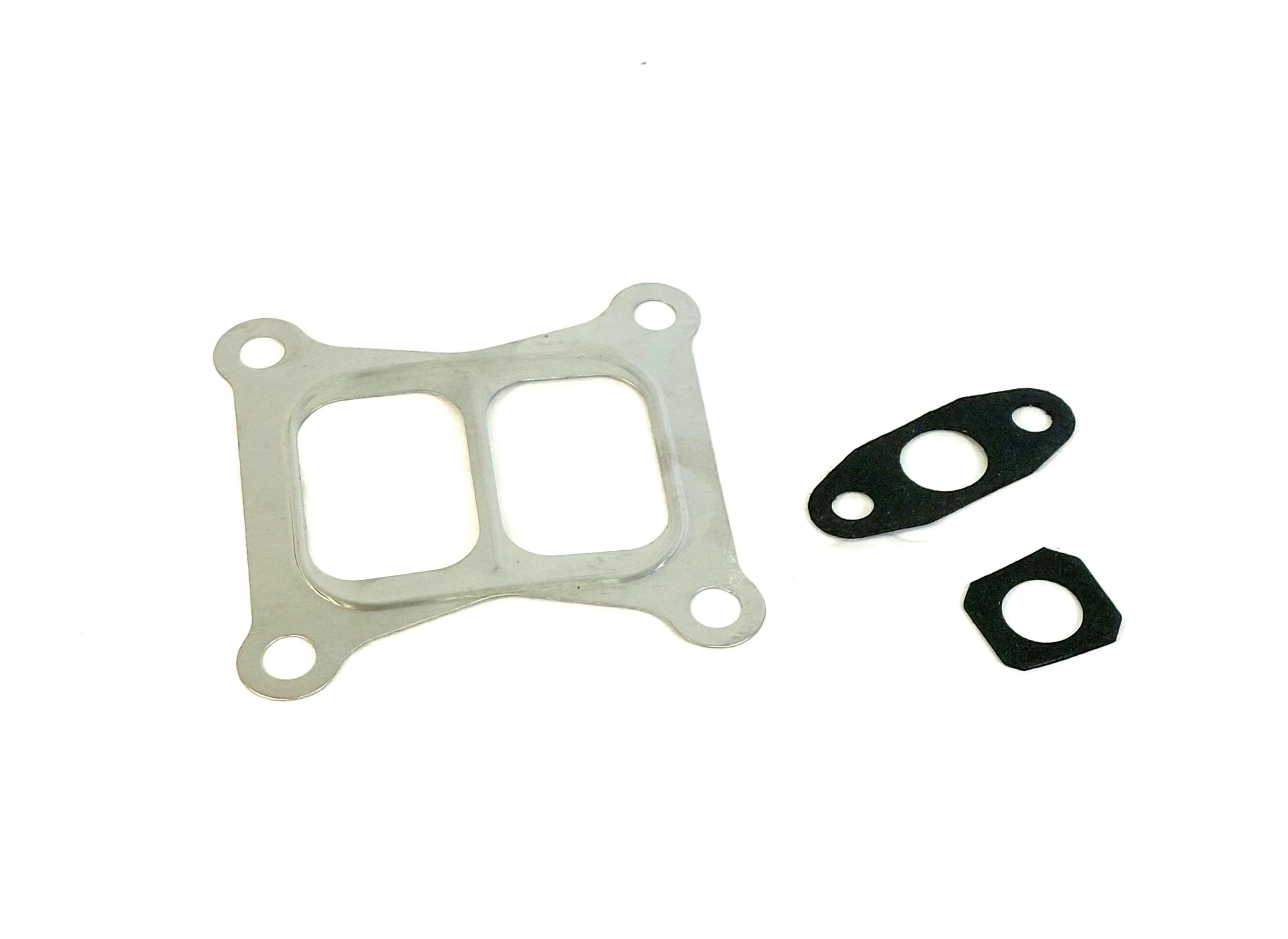

Packning (Olje utlopp): 129119 (1900000035)(201049, 9737, 1S6595, 210019-0000, 409266-0003, 3819900)
Packning (Utlopp olja): 210060 (311585, 148062, 2475013)(Paper)
Packninga (Turbininlopp): 409123-0002 (310694)(Inox Steel)
Värmesköld: 3529846/3533038 (1153055340)
Reparationskit: 3580762/3575181 (1153055750)
Turbinhus: 3536942

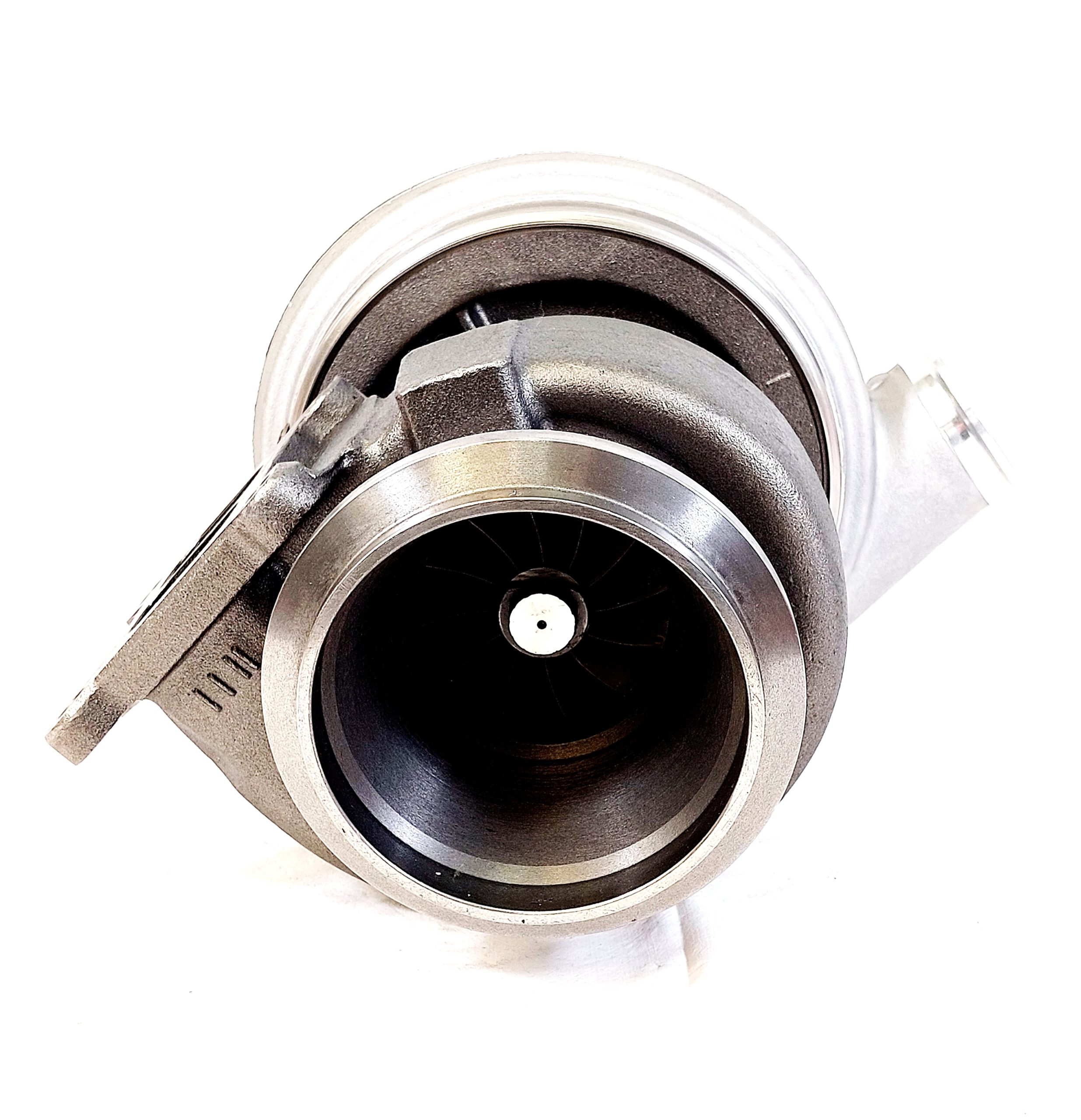

Turbinhjul: 3535983 (Ind. 85.8 mm, Exd. 76.95 mm, 12 Blades)(1153055436)



Artikelnr: T HX55



Ytterligare information

Vikt 14 kg
